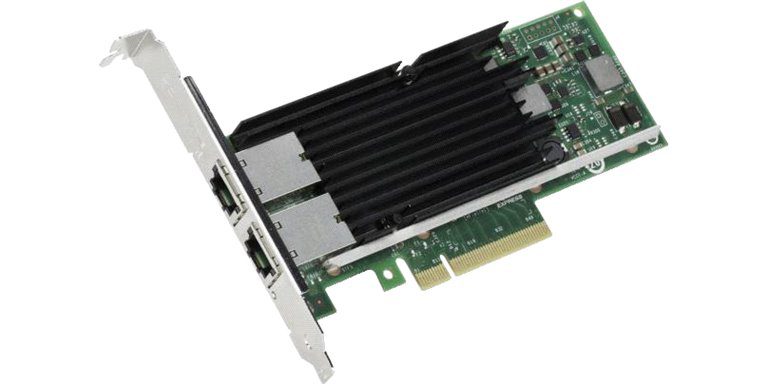

Intel X540-T2 Internal Ethernet 10000 Mbit/s

Description

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Additional information

Product family	Intel 10 Gigabit server adapter
Storage Over Ethernet	iSCSI, FCoE, NFS
Thermal Design Power (TDP)	13.4 W
Interface type	PCIe v2.1 (5.0GT/s)
iWARP/RDMA	N
Speed & slot width	5.0 GT/s, x8 Lane
Cable type	RJ-45 Category-6 up to 55 m; Category-6A up to 100 m
Operating temperature (T-T)	0 – 55 °C
Internal	Y
iSCSI support	Y
Cabling technology	10GBase-T
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Connectivity technology	Wired
Product series	Intel Converged X540
Status	Launched
Ethernet adapter ARK ID	58954
Product type	13
Intelligent Offloads	Y
PCI-SIG* SR-IOV Capable	Y
Number of VLANs	4096
Data transfer rate	5 GT/s
Storage temperature (T-T)	-40 – 70 °C
Product colour	Green, Silver
LAN controller	Intel® X540
VLAN tagging	Y
Ethernet LAN data rates	100,1000,10000 Mbit/s
Ethernet LAN	Y
Maximum data transfer rate	10000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Host interface	PCI Express
Storage relative humidity (H-H)	0 – 90%
Compatible operating systems	Windows Server 2012 R2, Windows Server 2012, Windows 8, Windows Server 2008 R2, Windows 7, Windows Server 2008 SP2, Windows Vista* SP2, Windows Server 2003 R2, Windows Server 2003 SP2, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9, VMware ESX/ESXi
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Intel Virtual Machine Device Queues (VMDq)	Y
On-chip QoS and Traffic Management	Y
Intel Flexible Port Partitioning	Y
Intel Ethernet Power Management	N
Intel Data Direct I/O Technology	Y
Intel Virtualization Technology for Connectivity (VT-c)	Y
