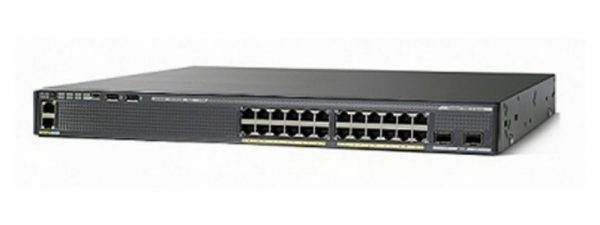

Cisco WS-C2960XR-24PD-I network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Description

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

– 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
– Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
– FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
– Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
– Reduced power consumption and advanced energy management features.
– USB and Ethernet management interfaces for simplified operations.
– Application visibility and capacity planning with integrated NetFlow-Lite.
– LAN Base or LAN Lite Cisco IOS® software features.
– Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

Additional information

Switch type	Managed
SFP+ module slots quantity	2
USB 2.0 ports quantity	2
10G support	Y
Link aggregation	Y
Rate limiting	Y
Spanning tree protocol	Y
Number of VLANs	1023
Switching capacity	216 Gbit/s
Jumbo frames support	Y
Access Control List (ACL)	Y
SSH/SSL support	Y
Rack mounting	Y
Product colour	Black
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Processor model	AppliedMicro APM8639
Memory type	DRAM
Flash memory	128 MB
AC input frequency	50 – 60 Hz
Power consumption (typical)	43 W
Operating temperature (T-T)	-5 – 40 °C
Operating altitude	0 – 3000 m
Width	445 mm
Height	44.5 mm
Harmonized System (HS) code	85176990
Switch layer	L2
Web-based management	Y
Console port	RJ-45
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az
Full duplex	Y
Broadcast storm control	Y
Auto MDI/MDI-X	Y
VLAN support	Y
MAC address table	16000 entries
Throughput	95.2 Mpps
DHCP features	DHCP server
IGMP snooping	Y
Multicast support	Y
Stackable	Y
LED indicators	Y
Built-in processor	Y
Processor frequency	600 MHz
Internal memory	512 MB
Noise level	40 dB
AC input voltage	90 – 264 V
Output power	640 W
Power over Ethernet (PoE)	Y
Storage temperature (T-T)	-25 – 70 °C
Non-operating altitude	0 – 4000 m
Depth	408 mm
Weight	6.2 kg
Power LED	Y
Mean time between failures (MTBF)	322740 h
Number of power supply units	1
Operating relative humidity (H-H)	10 – 95%
Storage relative humidity (H-H)	10 – 95%
Quality of Service (QoS) support	Y
Redundant power supply (RPS) support	Y
Power over Ethernet (PoE) ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Total Power over Ethernet (PoE) budget	370 W
