Cisco CP-8832-ETH-WW= conference phone IP conference phone

SKU CP-8832-ETH-WW= Category

Cisco CP-8832-ETH-WW= conference phone IP conference phone

IP Conference Phone 8832 non-PoE Ethernet Adapter Spare for Worldwide, with configurable Power Clip. A USB-C cable is included

Description

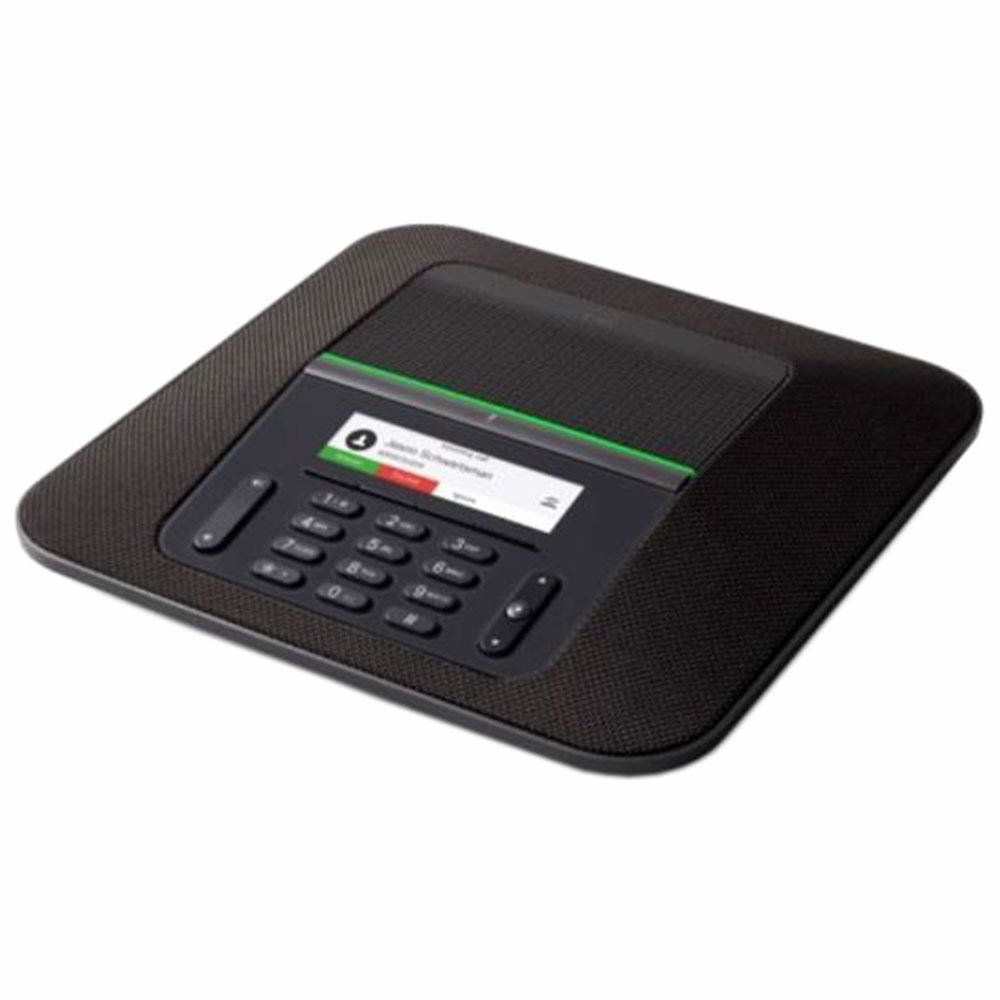

The Cisco IP Conference Phone 8832 enhances people-centric collaboration by delivering easy-to-use audio conferencing with astounding voice quality and clarity. Newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. Our unique acoustic design includes a “studio-monitor” full-range speaker. This loudspeaker architecture provides a dynamic, detailed sound with low distortion and low-frequency clarity, making conferencing an in-person experience with exceptionally clear and natural audio quality.

The Cisco IP Conference Phone 8832 provides a simple, flexible, scalable solution that meets the challenges of the most diverse rooms. With the base unit alone, it provides 360-degree coverage for any 20×20-foot room and up to 10 participants. With the optional wired extension microphone kit, it covers any 20×34-foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications [DECT] technology), it covers any 20×40-foot room and up to 26 participants. With a daisy-chain configuration of two 8832 units along with the optional wireless extension microphone kit, it covers up to a 20×57-foot room and up to 42 participants. It is ideal for executive offices, conference rooms, and boardrooms.

The 8832 unit has a sleek form by using approachable materials for a differentiated, modern look and feel. The key design elements include the following:
– 3.9-inch 480×128-pixel color LCD
– Textile cover for soft touch and durability
– Large mute button in the middle of the device for easy access from all angles
– LED indicator above the mute button showing the call status
– Raised edge for easier handling and repositioning on tabletop
– Crisp, precise button tactility
– Single USB-C port on the device to minimize the number of cables on the table (an Ethernet injector is required for any non-Wi-Fi deployment)

The optional wired microphone kit includes two wired microphones with anodized aluminum top housing.

Additional information

Weight
Certification

CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU
UL 60950 Second Edition

CAN/CSA-C22.2 No. 60950 Second Edition

EN 60950 Second Edition (including A11 and A12)
IEC 60950 Second Edition (including A11 and A12)
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
47CFR Part 15 (CFR 47) Class B
AS/NZS CISPR32 Class B

CISPR32
Class B
EN55032
 Class B
EN 300 386
ICES003 Class B

VCCI Class B

EN61000-3-2

EN61000-3-3

EN61000-4-2
IEC61000-4-2
EN61000-4-3
IEC61000-4-3
EN61000-4-6
IEC61000-4-6
KN22 Class B
EN55024

CISPR24

KN24
Armadillo Light
FCC Part 2.1093 (BT RF Exposure TR)
RSS-102 (BT RF Exposure TR)
RSS-210
RSS-213
RSS-247
EN 300 328
EN 300 440
EN 301 406
EN 50385 (BT RF Exposure TR)
EN 301-489-1
EN 301-489-3
EN 301-489-6
EN 301-489-17
EN 301 893
NCC LP0002
TIA810B
TIA920A

Security algorithms

EAP-FAST, EAP-TLS, HTTPS, SHA-256, SRTP, SSH

Supported network protocols

IPv4, IPv6, SIP, SDP, UDP, DHCP, GARP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, Cisco Discovery Protocol, LLDP

Operating relative humidity (H-H)

10 – 90%

Storage temperature (T-T)
Display diagonal

9.91 cm (3.9")

Operating temperature (T-T)
AC adapter included

Y

Storage relative humidity (H-H)

10 – 95%

Height
Display resolution

480 x 128 pixels

Width
Depth
Product colour
Conference call

Y

Voice codecs

G.711Mu, G.711a, G.722, G.729A, G.729ab, OPUS, iLBC

Cables included

USB

Display illumination

Y

Control type

Buttons

Microphone mute

Y

Call forwarding

Y

Call waiting

Y

Speed dialling

Y

Power over Ethernet (PoE)
Languages support

Arabic, Bulgarian, CAT, Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, LAT, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Swedish, Thai, Turkish, Ukrainian

Ethernet LAN data rates
Frequency range

100 – 20000 Hz

Call hold

Y

Ethernet interface type
Call transfer

Y

Built-in display

Y

Display type

LCD

Product type
Harmonized System (HS) code
