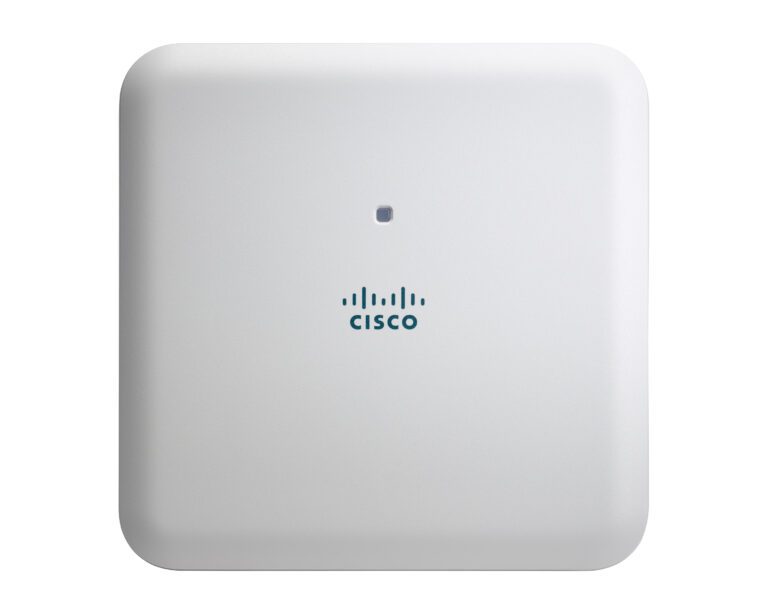

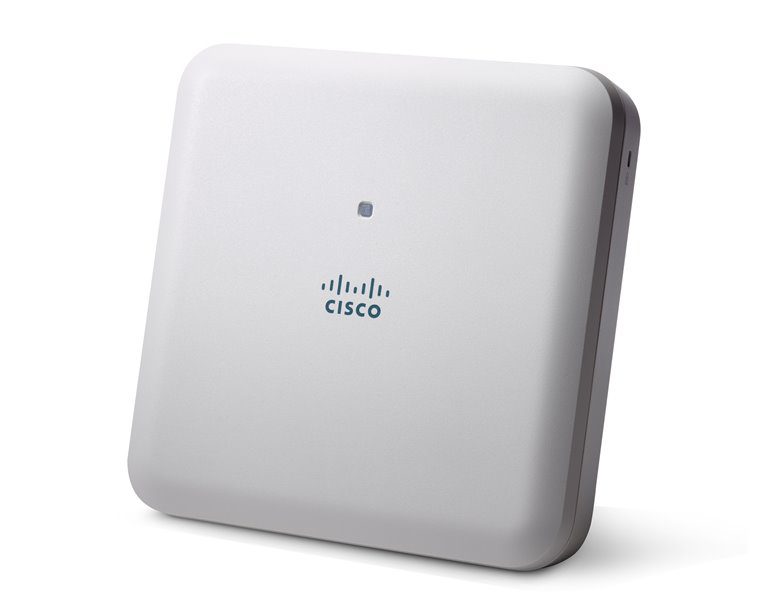

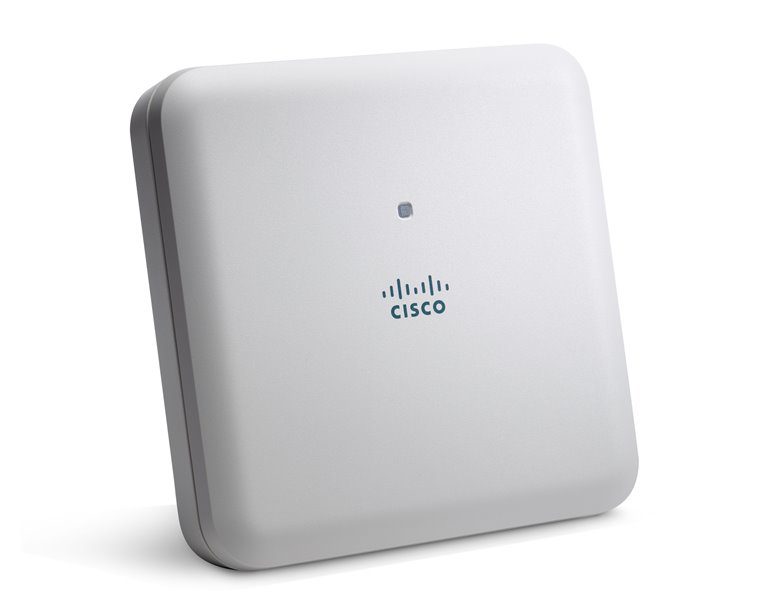

Cisco 1832I - Wireless Dual Band 802.11AC Access Point

Description

Cisco Aironet 1830’s series are Ideal for small and medium-sized networks, the series delivers great wireless performance with support for the advanced Wi-Fi standard, and meets the growing requirements of wireless networks by delivering a better user experience. The 1830 series extends support to a generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support. With 802.11ac Wave 2, the 1830 series provides a high data rate, exceeding the data rates offered by high-end 802.11n access points. It also enables a total aggregate dual-radio data rate, providing the necessary foundation for enterprise and service provider networks to stay ahead of the performance and bandwidth expectations and needs of their wireless users. Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1830 series delivers amazing performance for highly secure and reliable wireless connections and provides a robust mobility experience.

– 802.11a/b/g/n/ac (draft 5.0)
– Dual Band (2.4Ghz & 5Ghz)
– PoE for simplifed integration
– Throughput up to 1 Gbps

Additional information

Internal memory
Internal
Weight
Power consumption (typical)
Security algorithms	802.1x RADIUS, AES, TKIP, WPA, WPA2
Flash memory
Operating altitude
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)
Operating temperature (T-T)
Maximum data transfer rate
Storage relative humidity (H-H)	10 – 90%
Non-operating altitude
Height
LED indicators
Receiver sensitivity	802.11b (CCK) -101 dBm @ 1 Mbps -98 dBm @ 2 Mbps -92 dBm @ 5.5 Mbps -89 dBm @ 11 Mbps 802.11g (non HT20) -96 dBm @ 6 Mbps -95 dBm @ 9 Mbps -94 dBm @ 12 Mbps -92 dBm @ 18 Mbps -88 dBm @ 24 Mbps -85 dBm @ 36 Mbps ◦ -81 dBm @ 48 Mbps ◦ -79 dBm @ 54 Mbps 802.11a (non HT20) -96 dBm @ 6 Mbps -95 dBm @ 9 Mbps -94 dBm @ 12 Mbps -92 dBm @ 18 Mbps -88 dBm @ 24 Mbps -85 dBm @ 36 Mbps -80 dBm @ 48 Mbps -79 dBm @ 54 Mbps 2.4 GHz 802.11n (HT20) -96 dBm @ MCS0 -93 dBm @ MCS1 -90 dBm @ MCS2 -87 dBm @ MCS3 -84 dBm @ MCS4 -79 dBm @ MCS5 -78 dBm @ MCS6 -76 dBm @ MCS7 -93 dBm @ MCS8 -90 dBm @ MCS9 -87 dBm @ MCS10 -84 dBm @ MCS11 -81 dBm @ MCS12 -76 dBm @ MCS13 -75 dBm @ MCS14 -73 dBm @ MCS15 5 GHz 802.11n (HT20) -96 dBm @ MCS0 -92 dBm @ MCS1 -90 dBm @ MCS2 -86 dBm @ MCS3 -83 dBm @ MCS4 -79 dBm @ MCS5 -77 dBm @ MCS6 -76 dBm @ MCS7
WAN connection	Ethernet (RJ-45)
Width
Depth
Product colour
Frequency band	2.4 – 5 GHz
Networking standards
Antenna gain level (max)	5 dBi
Channels quantity	25 channels
USB 2.0 ports quantity
Ethernet LAN (RJ-45) ports
DC-in jack	Y
Ethernet LAN data rates
Antennas quantity	3
Placement	Ceiling, Table, Wall
AC input frequency
AC input voltage
2.4 GHz	Y
5 GHz	Y
Wi-Fi Multimedia (WMM)/(WME)	Y
Harmonized System (HS) code
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
