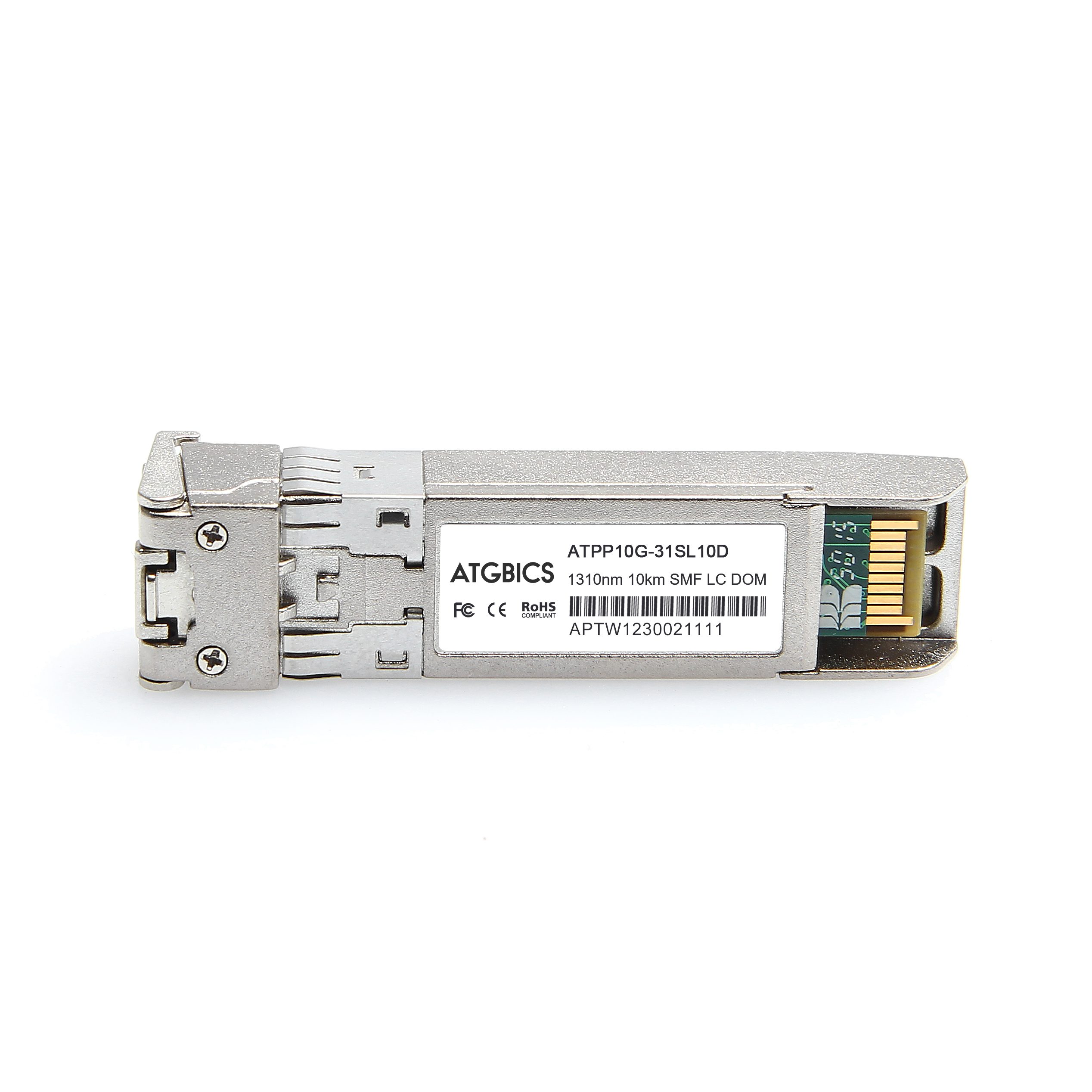

ATGBICS AT-SP10LR Allied Telesis Compatible Transceiver SFP+ 10GBase-LR (1310nm, SMF, 10km, DOM)

Description

ATGBICS AT-SP10LR 10GBase-LR supports a distance of up to 10km over single-mode fibre (SMF) using a wavelength of 1310nm via an LC connector. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. Our productmeets the specification of Allied Telesis AT-SP10LR= and we proudly offer a compatibility guarantee and lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA Standards.

Additional information

Weight
Certification	CE, FCC, RoHS
Power consumption (typical)
Operating relative humidity (H-H)	0 – 95%
Storage temperature (T-T)
Plug and Play	Y
Interface type
Operating temperature (T-T)
Maximum data transfer rate
Ethernet LAN
Storage relative humidity (H-H)	0 – 95%
Height
Input voltage	3.3 V
Width
Depth
Product colour
Wavelength	1310 nm
Hot-Plug support
Maximum operating temperature	70 °C
Country of origin	China
Easy to install	Y
Package type	Box
Housing material	Metal
Number of products included	1 pc(s)
Hot-swap	Y
Ethernet interface type
Fiber optic connector	LC
Brand compatibility
Maximum transfer distance	10000 m
SFP transceiver type	Fiber optic
Maximum voltage	3.5 V
Wavelength-division multiplexing (WDM)	N
Digital Diagnostics Monitoring (DDM)	Y
Multi-mode fiber (MMF) supported	N
Single-mode fiber (SMF) supported	Y
SFP transceiver standard	LR
Sustainability compliance	Y
Sustainability certificates
Doesn't contain	Lead
